District hospital, South Goa

A 499 kWp plant spread across the pitched roofs of a district hospital in South Goa.

Capacity
499 kWp DC
Location
South Goa
Year
2026
Type
Rooftop
Arrays across the hospital roofs, District hospital, South Goa
Arrays across the hospital roofs

The roofs face five different ways, at two tilts. Every face was modelled in 3D, and each string was assigned to an MPPT input so that only panels facing the same way share one. The result is a 51-string layout on four 125 kW string inverters.

Delivered

  • 3D design
  • DC stringing and cable layout
  • Single line diagram
  • PVsyst report
  • Bill of materials

System

Modules846 × 590 Wp
Inverters4 × 125 kW string inverters, 500 kW AC
Strings51, configured MPPT by MPPT
Roof orientations5 orientations, at 12° and 17° tilt
PVsyst estimate713.6 MWh per year, 1,430 kWh/kWp, PR 79.4%

PVsyst estimate for the variant without near shading.

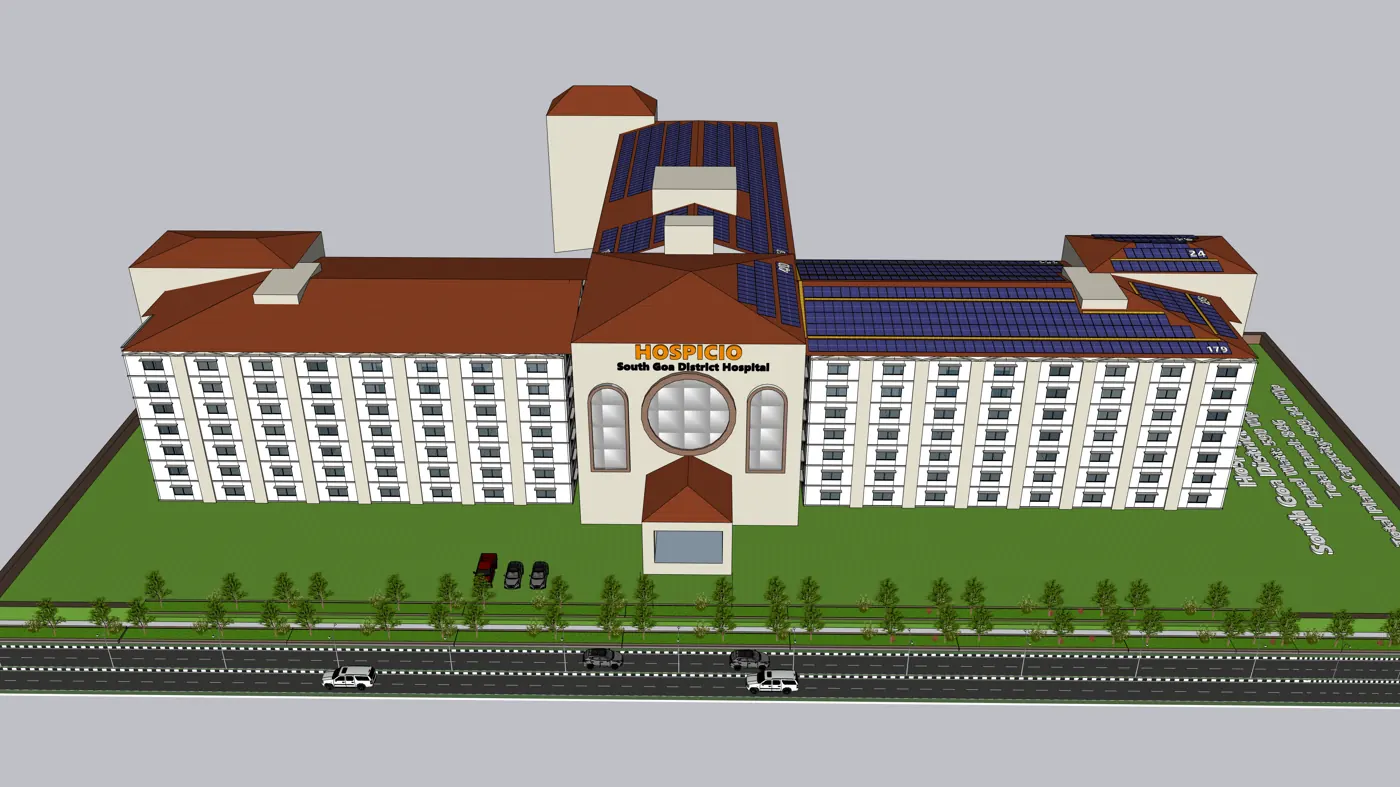

The hospital front, with the main hip roof, District hospital, South Goa
The hospital front, with the main hip roof

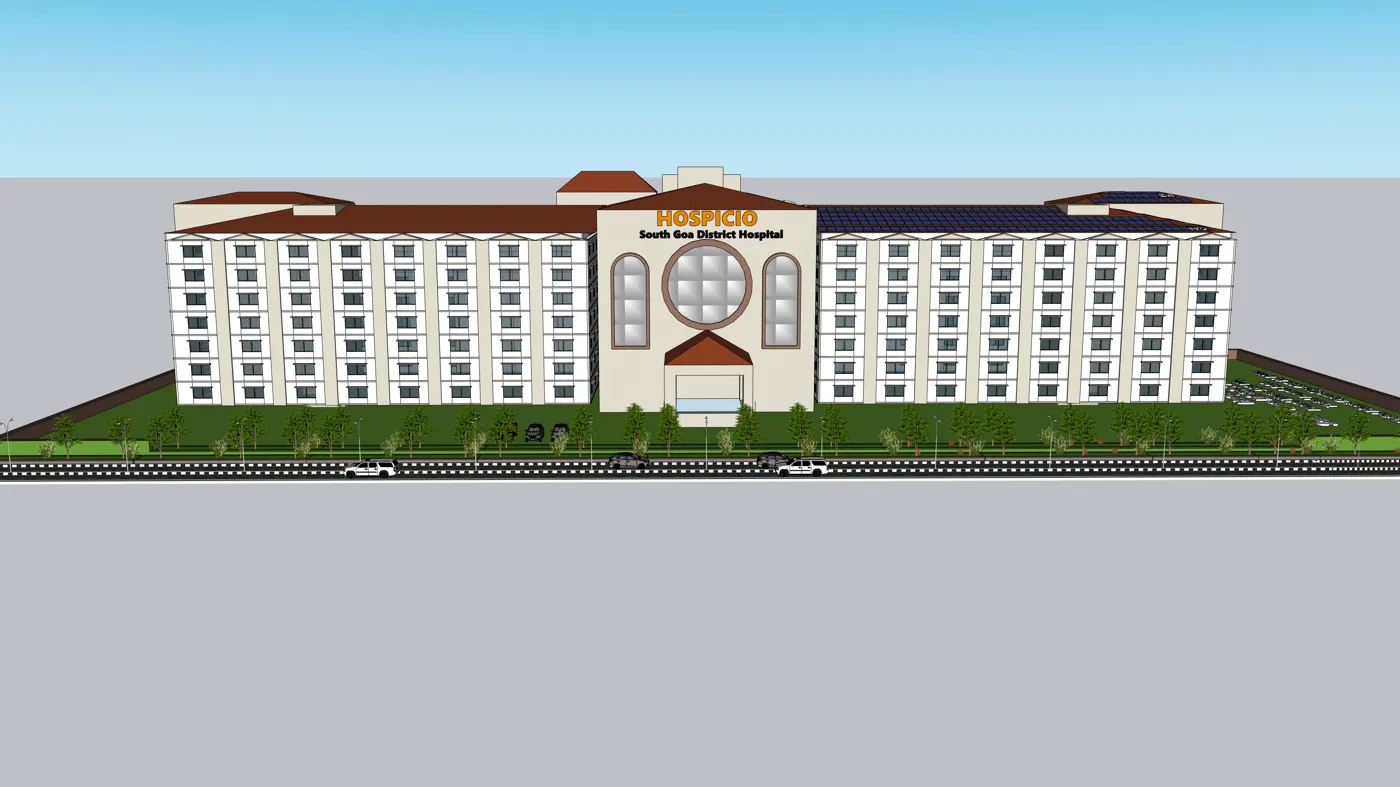

Front elevation, District hospital, South Goa
Front elevation

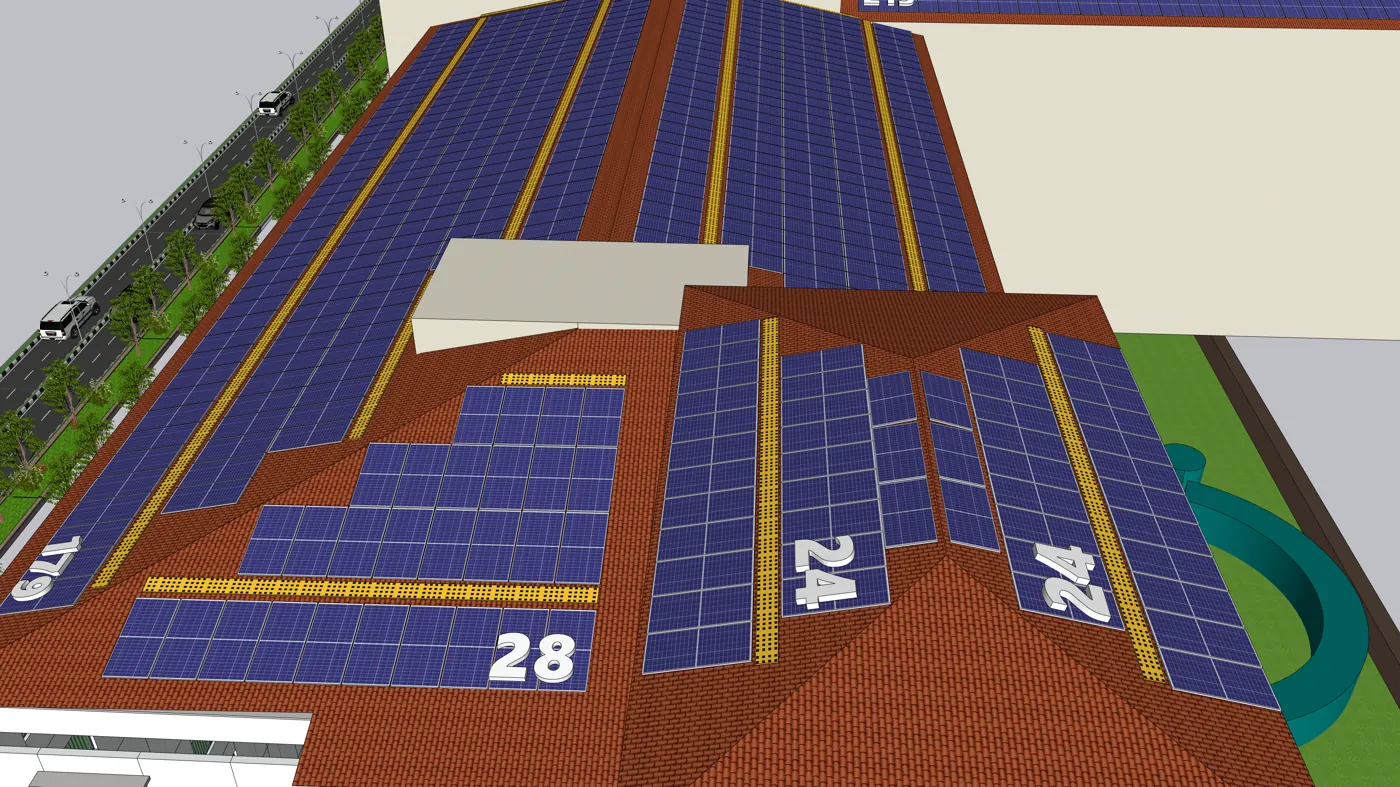

Numbered string blocks on the pitched roofs, District hospital, South Goa
Numbered string blocks on the pitched roofs

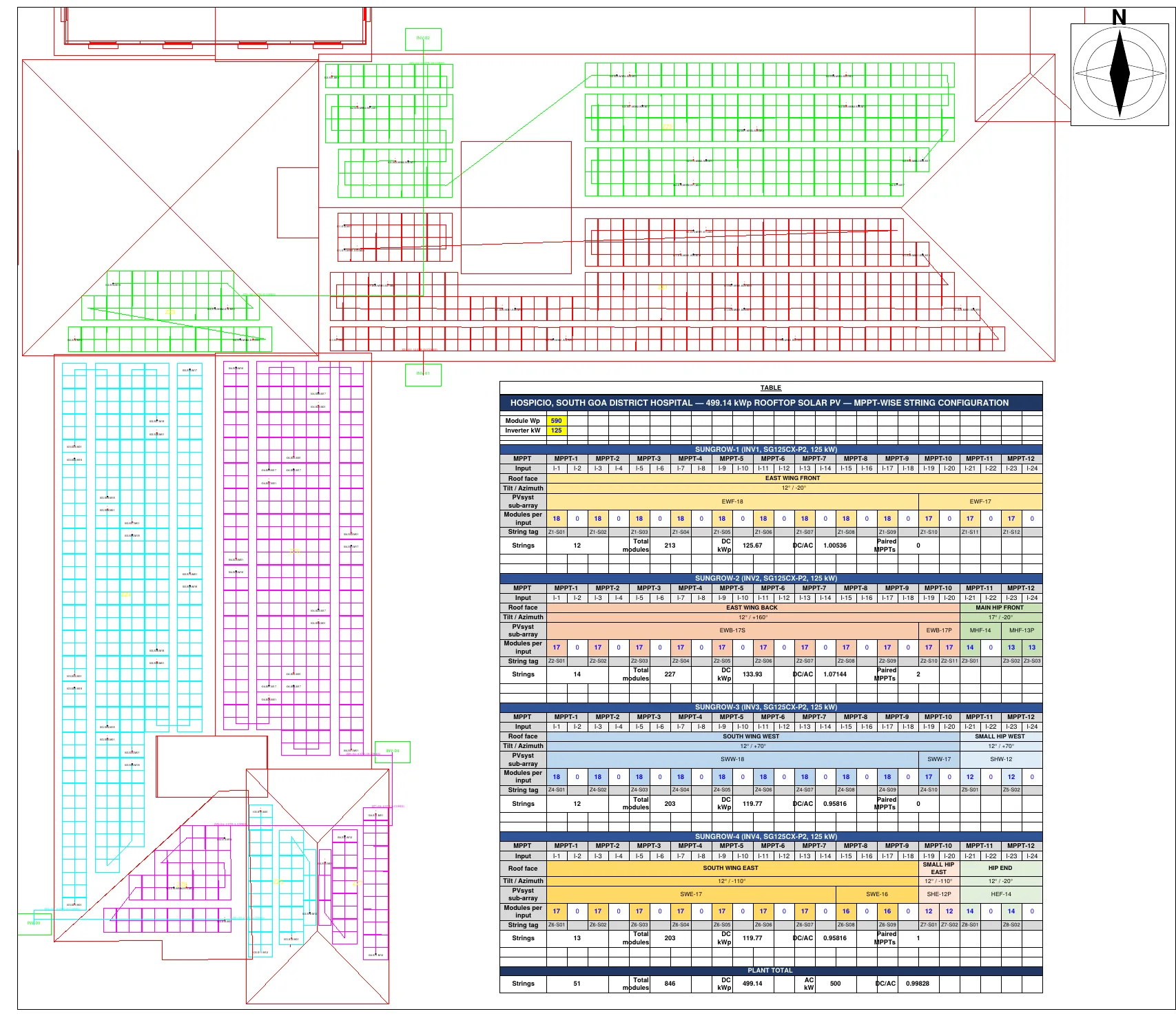

DC cable layout with the MPPT-wise string configuration table
DC cable layout with the MPPT-wise string configuration table
