Design services / 3D design

3D design projects

Solar plants we have modelled and designed in 3D for EPCs across India. In total, over 20 MW for more than 15 clients since 2025. Client names are kept confidential.

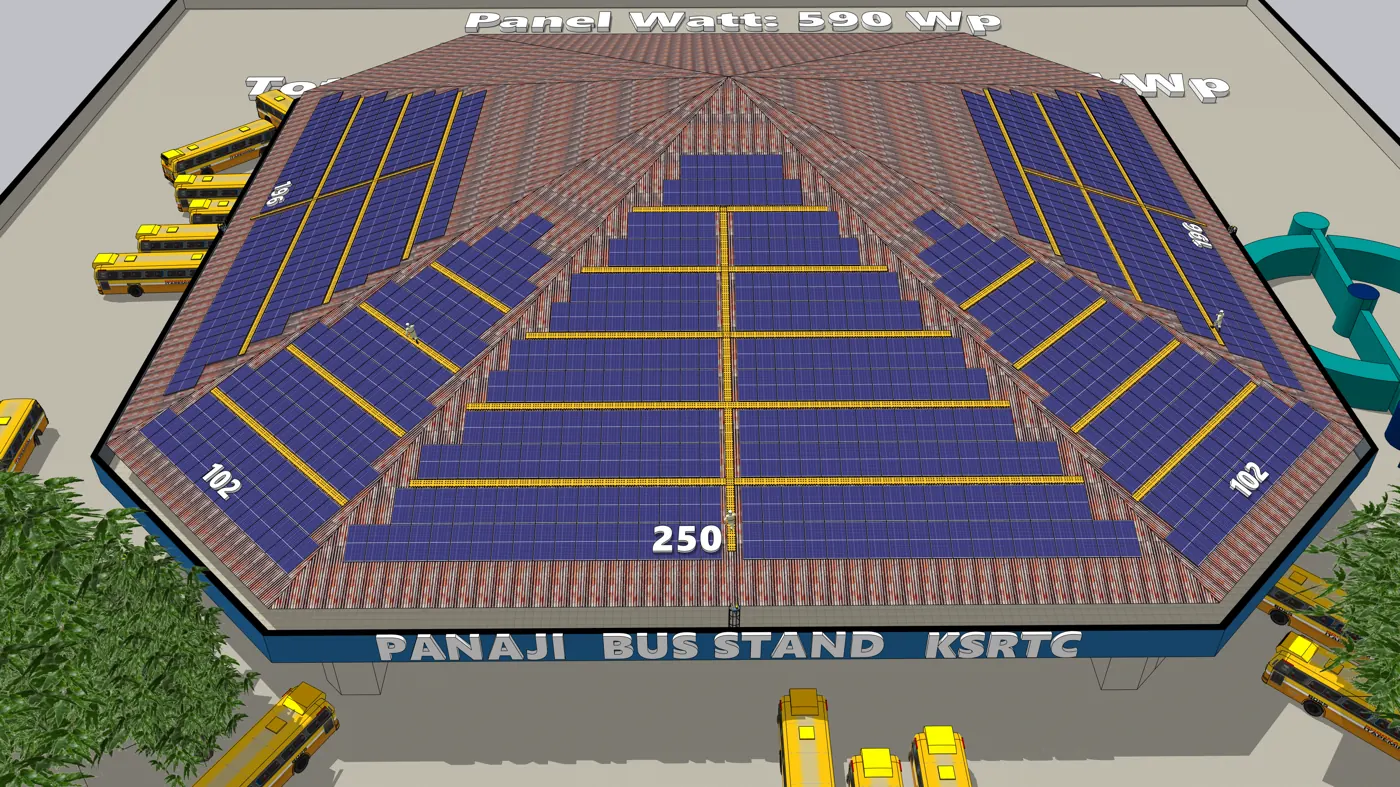

The design in 3D, with the panel count for each block, Panaji Bus Stand, Goa

Panaji Bus Stand, Goa

500 kW on an octagonal roof, with DC and AC cable layouts, PVsyst and SLD.

Arrays across the hospital roofs, District hospital, South Goa

District hospital, South Goa

500 kW across five roof orientations, with DC stringing, SLD, PVsyst and BOM.

DAV Public School, Paradip, Odisha

Paradip, Odisha

900 kW across six public buildings, with PVsyst, DC cabling and BOM.

Panel blocks across the roof levels, Shlokam Sharanam, Ahmedabad

Shlokam Sharanam, Ahmedabad

124 kW on a residential tower: panel placement and shadow analysis.

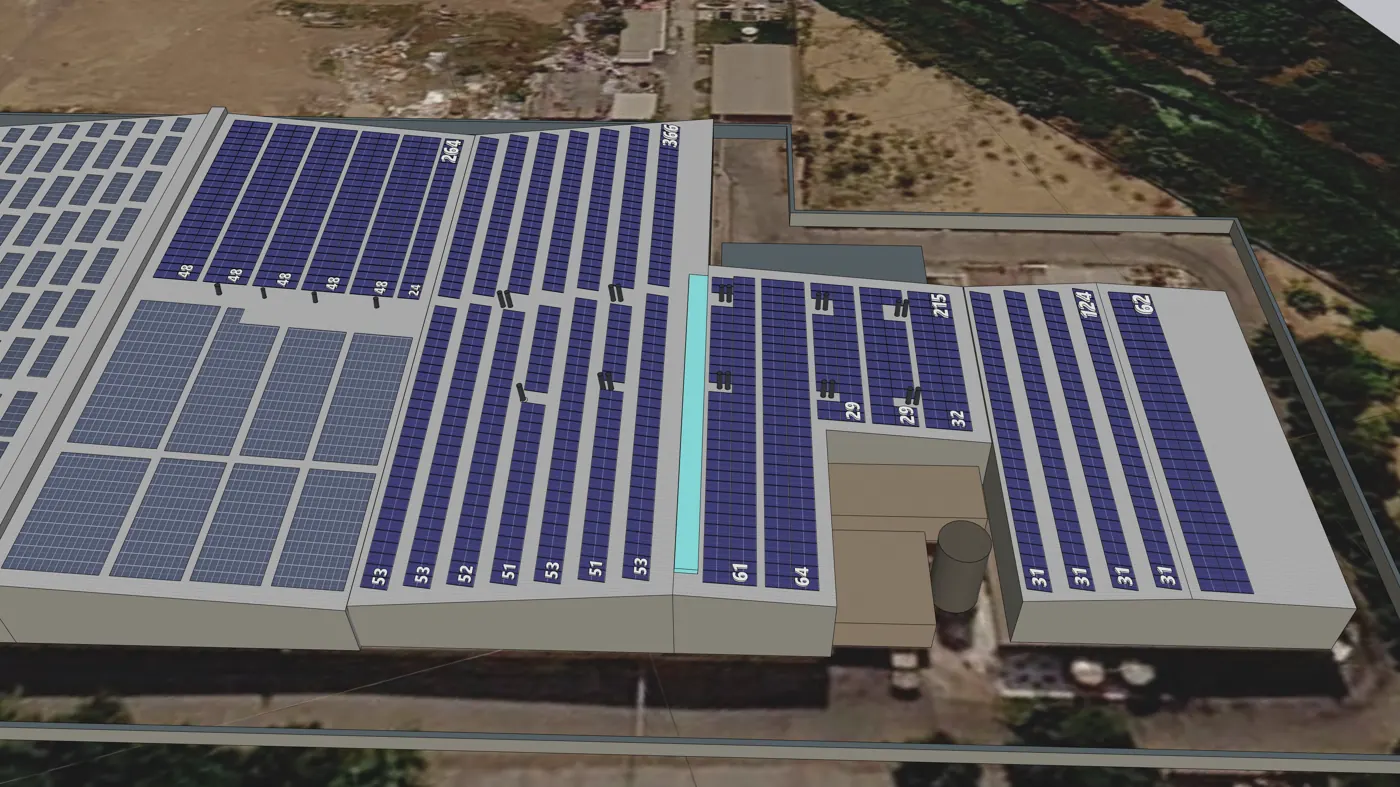

The plant on its real surroundings, Industrial rooftop, 700 kW

Industrial rooftop, 700 kW

Panel placement for a 700 kW plant, modelled on the real site.

More projects

  • Food processing unit, Anand, Gujarat. 140 kW, 2024: panel placement, shadow analysis, PVsyst and bill of materials.
