Panaji Bus Stand, Goa

A 500 kW plant on the octagonal, tiled roof of Panaji’s bus terminus.

Capacity
500 kW
Location
Panaji, Goa
Year
2026
Type
Rooftop
The design in 3D, with the panel count for each block, Panaji Bus Stand, Goa
The design in 3D, with the panel count for each block

Every face of an octagonal roof slopes a different way. The panels were laid out face by face in 3D, and the blocks were numbered so the stringing and cable layouts could follow them directly.

Delivered

  • 3D design
  • DC cable layout
  • AC cable layout
  • PVsyst report
  • Single line diagram

Explore the 3D model

Rotate and zoom the design in your browser. The model is about 18 MB, so it loads only when you ask for it.

Drag to rotate, scroll or pinch to zoom.

Open the 3D model full screen

Top view of all roof faces, Panaji Bus Stand, Goa
Top view of all roof faces

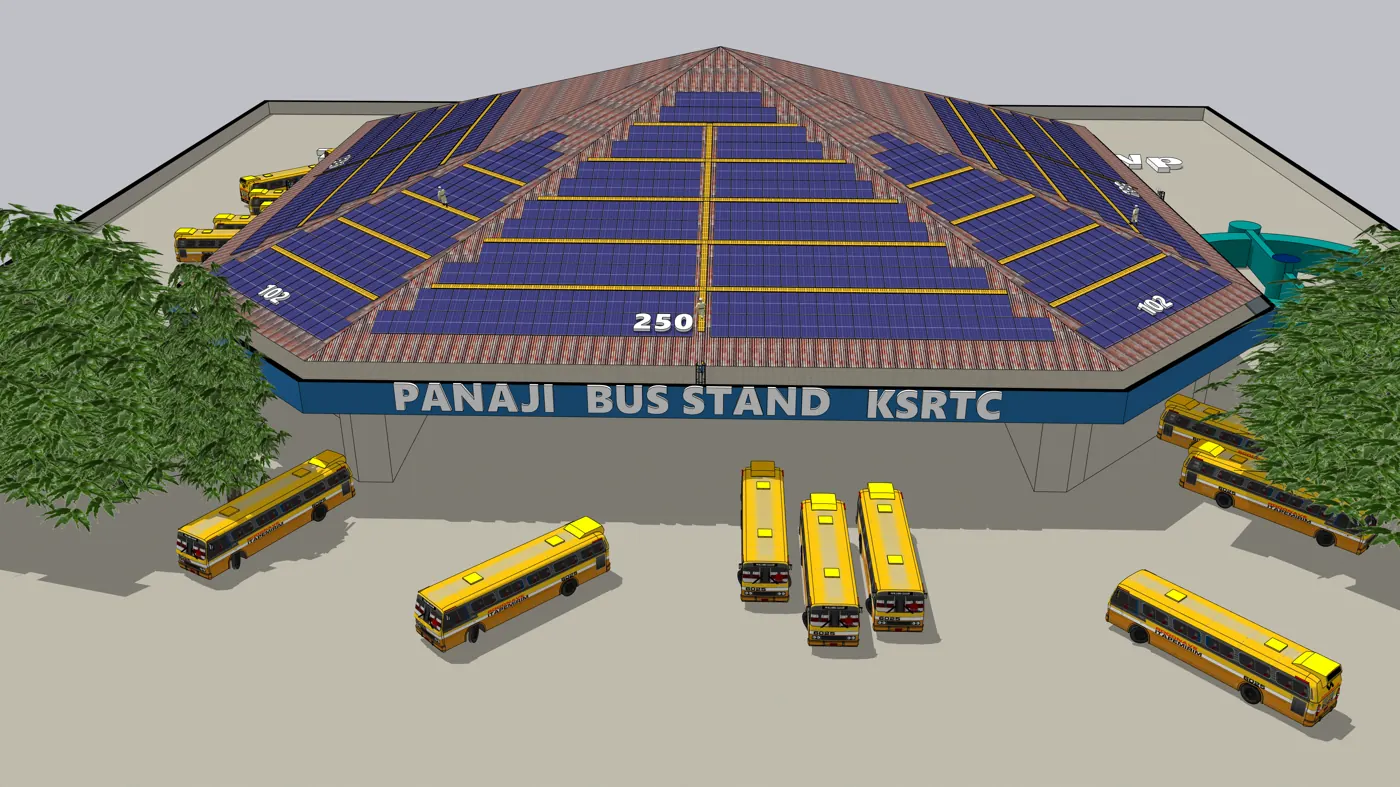

Front view over the bus bays, Panaji Bus Stand, Goa
Front view over the bus bays

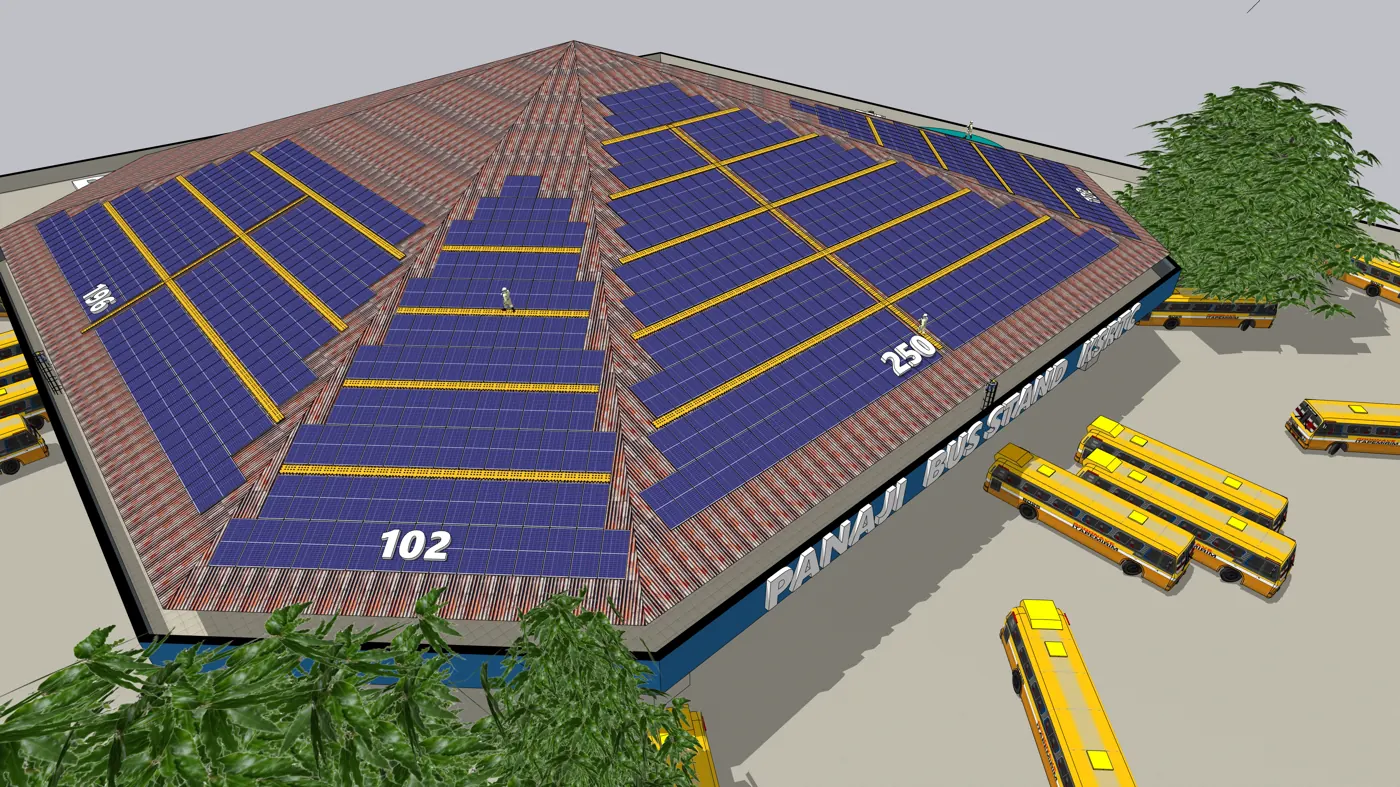

Panel blocks on the eastern faces, Panaji Bus Stand, Goa
Panel blocks on the eastern faces

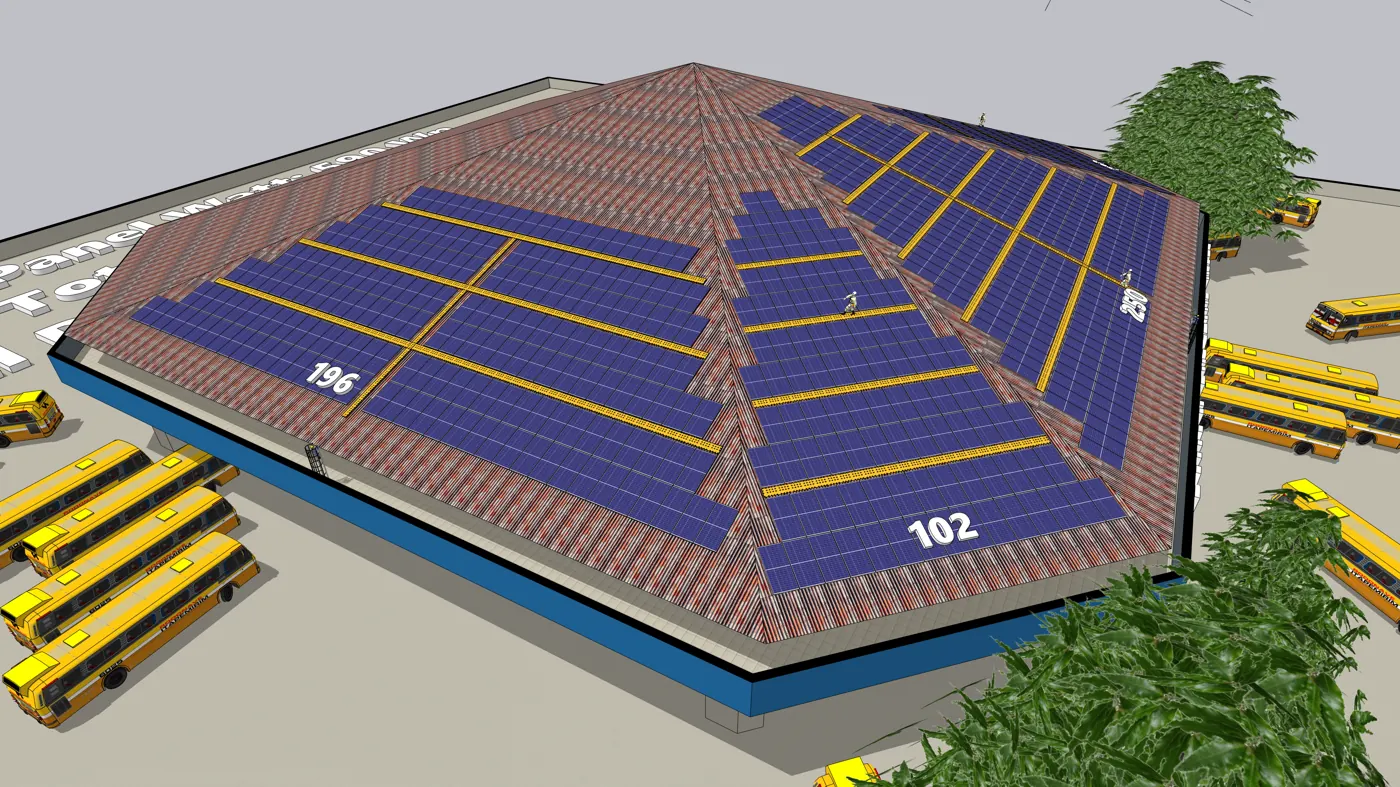

Panel blocks on the western faces, Panaji Bus Stand, Goa
Panel blocks on the western faces
